Waste Home Appliance Recycling Machine Waste Home Appliance Plastic Crushing Recycling Machine

Brand Name : Xrido

Model Number : Customizable

Certification : CE ISO

Payment Terms : Negotiable

Delivery Time : 2-32 work days

place of origin : Henan, China

video outgoing-inspection : Provided

machinery test report : Provided

core components : PLC, Engine, motor

warranty : 1 Year

material / metal processed : Stainless Steel, Brass / Copper, Alloy, Carbon Steel, Aluminum

key selling points : Multifunctional

Application : Scrap Cable Recycling

Name : Scrap Metal Crusher Machine

Keyword : Scrap Metal Shredder Line

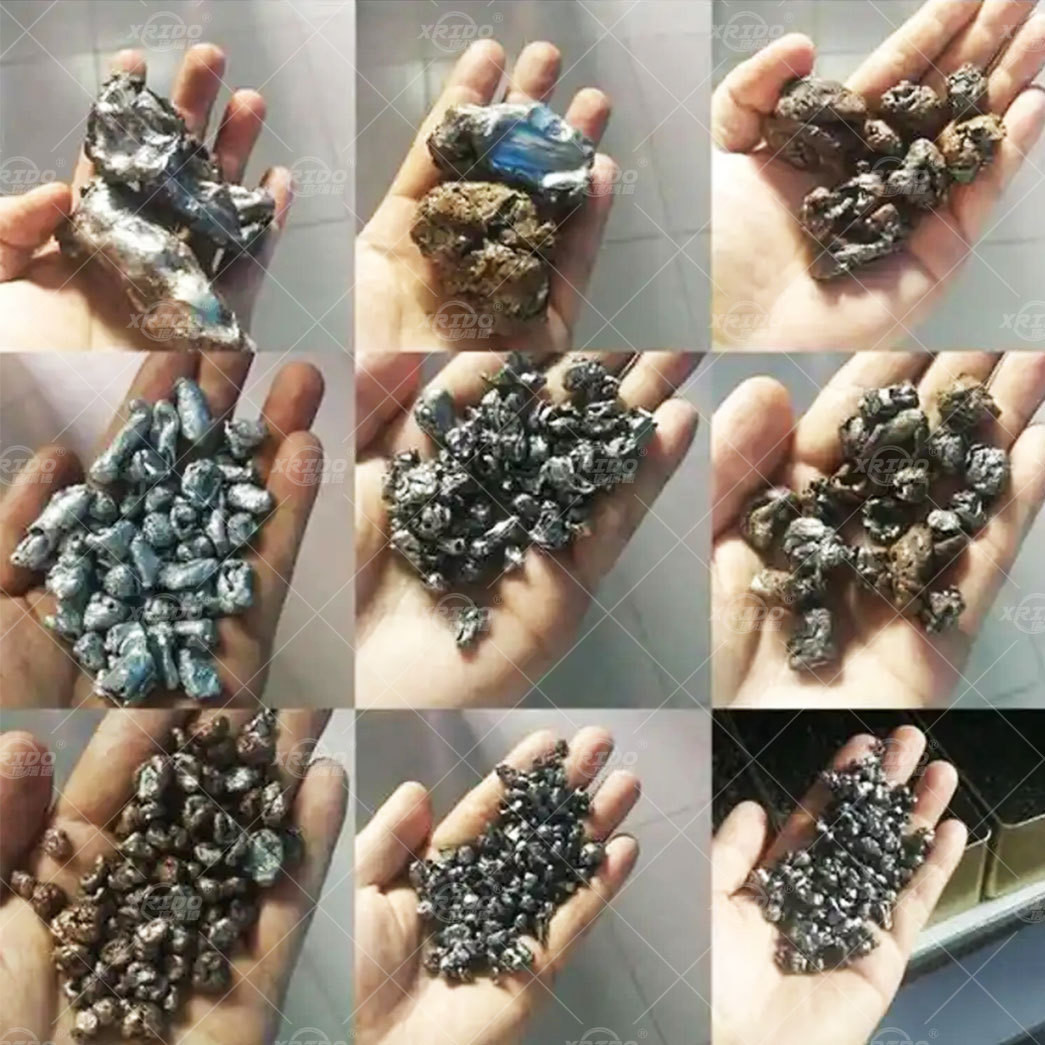

Final product : 1-10 Cm

Function : Recycle Metal

Voltage : 380/230/220v

Warranty : 12 Months

Advantage : 99% Separate Purity

Color : Customer's Requirement

Condition : New

Applicable Industries : Building Material Shops, Machinery Repair Shops, Printing Shops

Contact Now

Waste Home Appliance Recycling Machine, Waste Home Appliance Crusher, Plastic Crushing Recycling Machine
Products Description

Home appliance crusher is a mechanical equipment specially used for processing discarded home appliances (such as refrigerators, televisions, washing machines, etc.). It uses mechanical force to break the whole machine or parts into small pieces for subsequent resource recycling. Its core design usually includes crushing structures such as spiral tooth cutter discs and impact hammers, which can achieve multiple crushing effects such as squeezing, tearing, and shearing.

Waste Home Appliance Recycling Machine Waste Home Appliance Plastic Crushing Recycling Machine

Application fields of household appliance crusher
1. ‌Recycling of waste household appliances‌
Mainly used for the crushing and disassembly of large household appliances such as refrigerators, washing machines, air conditioners, and televisions, to achieve the separation and recycling of metals (iron, copper, aluminum) and non-metals (plastics, rubber).
By reducing the volume through crushing, it is convenient for subsequent resource classification and transportation.
2. ‌Electronic waste treatment‌
Applicable to electronic waste such as waste computers, printers, and CDs, and extract recyclable metals and plastics after crushing.
Some models can handle electronic components containing hazardous materials (such as circuit boards), which require environmental protection processes.
3. ‌Automobile dismantling industry‌
Crushing metal parts such as automobile shells and wheels is similar to household appliance crushing technology, and some equipment can be used universally.
4. ‌Industrial waste treatment‌
Handling metal scraps, scrap steel, etc. in the industrial field to improve the efficiency of scrap steel smelting.
The double-axis shearing crusher can handle mixed industrial waste such as rubber tires and leather waste.

Waste Home Appliance Recycling Machine Waste Home Appliance Plastic Crushing Recycling Machine
Introduction to the working principle of the waste home appliance crusher:
The waste home appliance raw materials are transported to the feed slope through the scale plate conveyor. The feed slope is equipped with two rotatable rollers, one high and one low, to flatten them and send them into the crusher. In the crusher, ten discs fixed on the main shaft and ten hammers installed between the discs that can swing freely use the kinetic energy generated by high-speed rotation to smash, tear and crush the scrap steel, so that the scrap steel is processed into blocks or lumps, passes through the lower and top grids, and falls on the vibrating conveyor. The scrap steel that failed to be processed into a small enough size for the first time will be processed again by the rotating discs and hammers in the crusher until it can pass through the grid. If any unbreakable objects accidentally enter the crusher, the operator shall promptly open the discharge door located below the top to eject them. While the crusher is crushing, water is sprayed inside the crusher to cool it down and avoid dust. The crushed objects coming out of the crusher are separated from the ferrous metal objects and non-ferrous metal objects and non-metal objects by the vibrating conveyor, belt conveyor, and magnetic separation system, and then sent out by their respective conveyors to pile. Non-ferrous metals and non-metal objects will be searched again by the magnetic separation equipment on the conveyor to pick out the free ferrous metal objects, thereby increasing the recovery rate of ferrous metal objects. At the same time, the recovery efficiency can be improved by manually selecting non-ferrous metals.

Waste Home Appliance Recycling Machine Waste Home Appliance Plastic Crushing Recycling Machine

Metal and plastic separation technology of household appliance crusher:
Mechanical crushing and sorting ‌
Break the material by physical methods such as hammering and shearing. Metals are easy to form a mass due to their toughness, while plastics are broken into particles to achieve preliminary separation.
Typical equipment such as double-axis shear crusher can achieve 95% efficiency in separating refrigerator foam and metal.

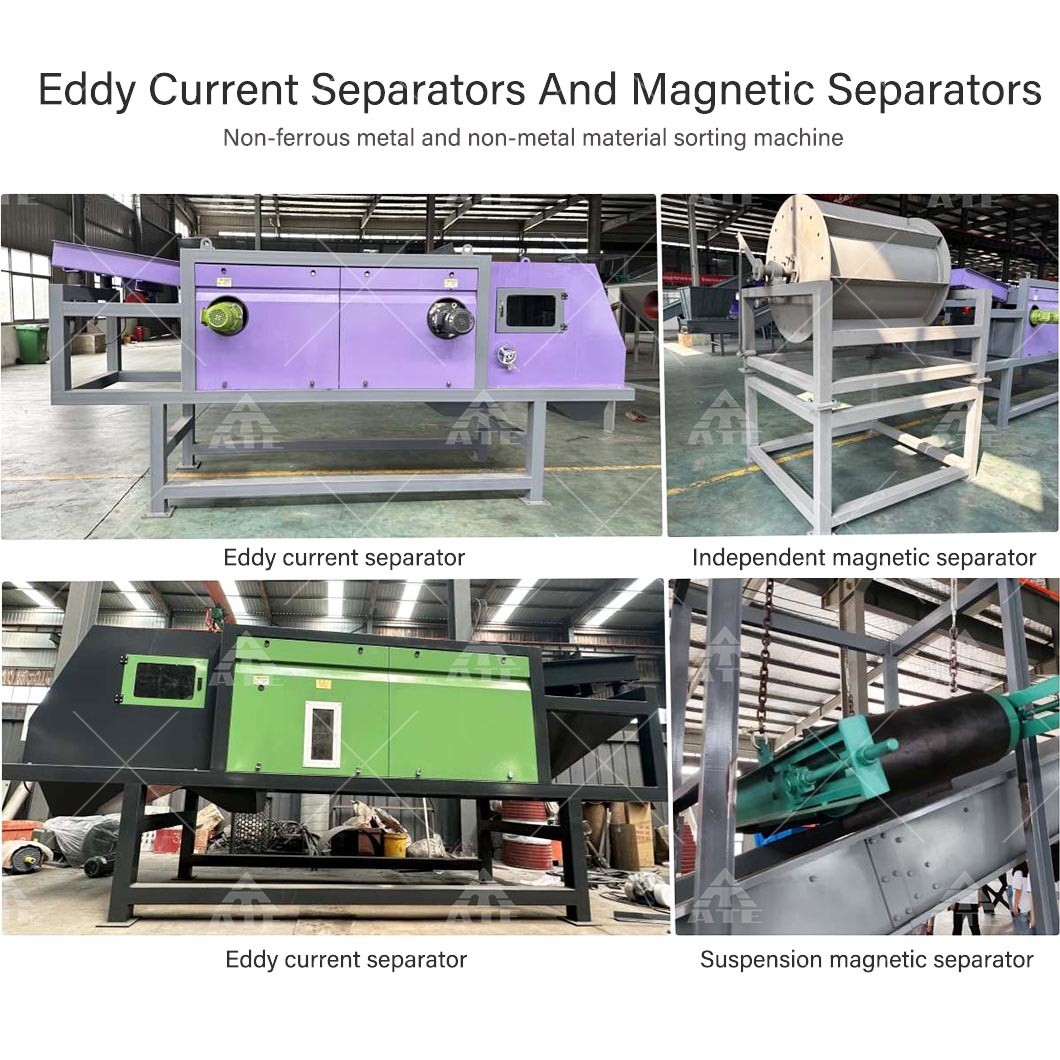

Electrostatic sorting technology ‌
Aluminum-plastic separator uses the difference in conductivity between metal and non-metal, with a sorting rate of up to 99.8%, which is especially suitable for aluminum-plastic composite materials.
Magnetic separation and airflow sorting ‌
Magnetic metals (such as iron) are directly recovered by magnetic separation, and non-magnetic metals (copper and aluminum) need to be combined with airflow or eddy current sorting.

Waste Home Appliance Recycling Machine Waste Home Appliance Plastic Crushing Recycling Machine

Process:

Waste Home Appliance Recycling Machine Waste Home Appliance Plastic Crushing Recycling Machine

Waste Home Appliance Recycling Machine Waste Home Appliance Plastic Crushing Recycling Machine

Product Paramenters:
model
voltage
power(kw)
capacity(t/h)
accessory equipment
PSJ-140
380v
132
2-3
Feeding conveyor one

Discharging conveyor one

Iron conveyor one

Impurity conveyor one

Magnetic separation system one

Dust removal system one

Control system one

Intelligent Visual System (Optional) one

Sprinkler system (optional) one
PSJ-200
380v
200
3-5
PSJ-280
380v
280
4-7
PSJ-315
380v
315
5-8
PSJ-450
380v
450
8-12
PSJ-630
10kv
630
10-15
PSJ-750
10kv
750
12-17
PSJ-800
10kv
800
15-20
PSJ-900
10kv
900
20-30
1500HP
10kv
1200
25-40
2000HP
10kv
1500
50-60
3000HP
10kv
2250
60-80
4000HP
10kv
3000
80-100
6000HP
10kv
4420
100-160
8000HP
10kv
6000
160-200
10000HP
10kv
7500
200-26

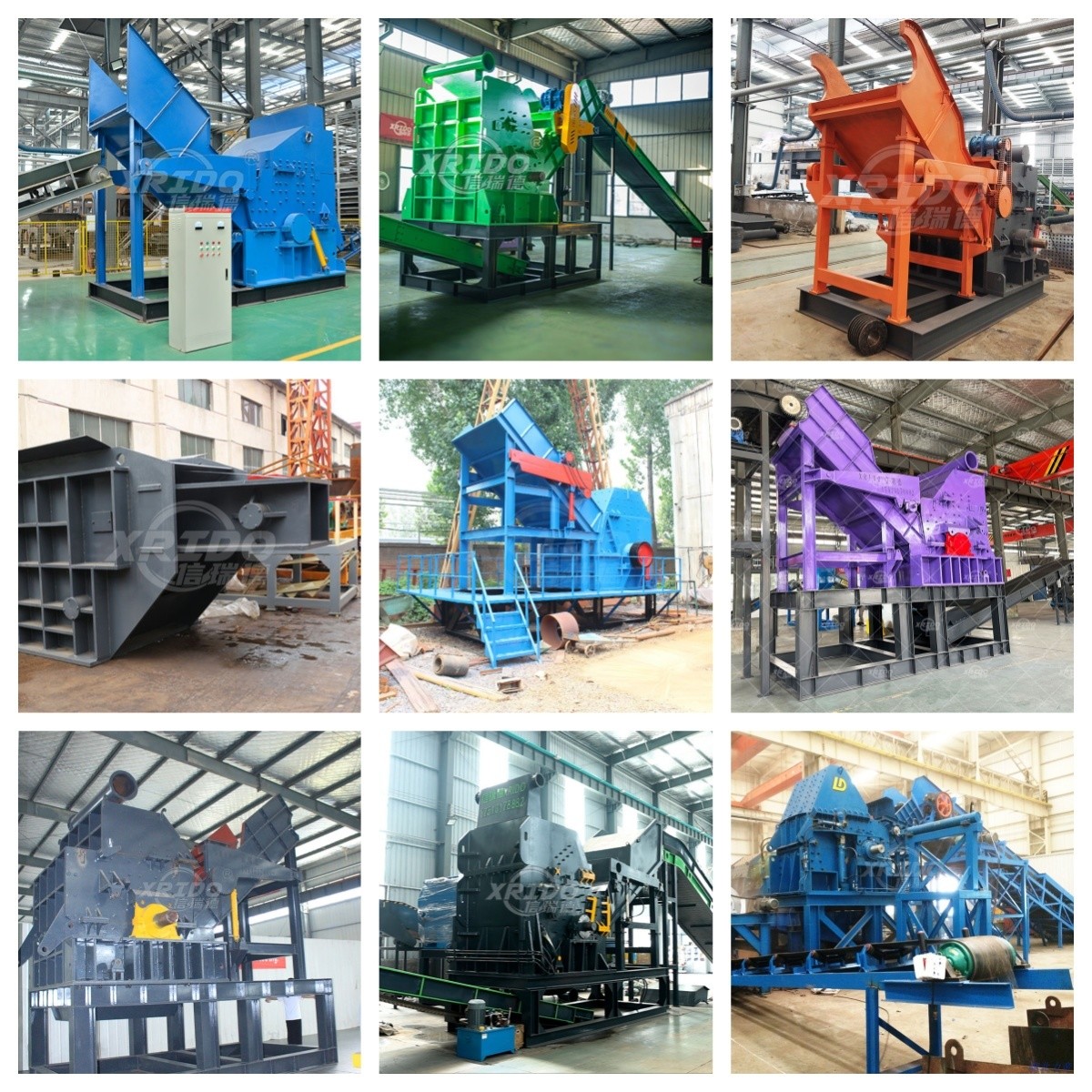

Case:

Waste Home Appliance Recycling Machine Waste Home Appliance Plastic Crushing Recycling Machine

Waste Home Appliance Recycling Machine Waste Home Appliance Plastic Crushing Recycling Machine
