Msw Srf Rdf Briquette Machine Cloth Plastic Fabric RDF Briquetting Machine MSW To RDF SRF Briquette Plant

Certification : CE ISO TUV

Brand Name : Xrido

Model Number : Customizable

Payment Terms : Negotiable

Delivery Time : 2-30 Working Days

place of origin : Henan, China

type : Refuse Collector

warranty : 1 Year

material : Export Wooden Packing

machinery test report : Provided

video outgoing-inspection : Provided

core components : Pressure vessel, motor, Bearing, Gear, PLC, Pump, Engine

weight (kg) : 800

Power : Custom

Product name : Refuse Derived Fuel RDF Briquette Press Machine

Application : Recycling and Utilization of Waste

Suitable material : Hard Wood Briquette

After Warranty Service : Field Maintenance

Advantage : Easy Operation High Efficiency

Briquette size : 8-75mm

Usage : Make Fuel Briquettes

Production Capacity : 100%

Voltage : Country Voltage

Contact Now

Msw Srf Rdf Briquette Machine Cloth Plastic Fabric RDF Briquetting Machine MSW To RDF SRF Briquette Plant
Products Description

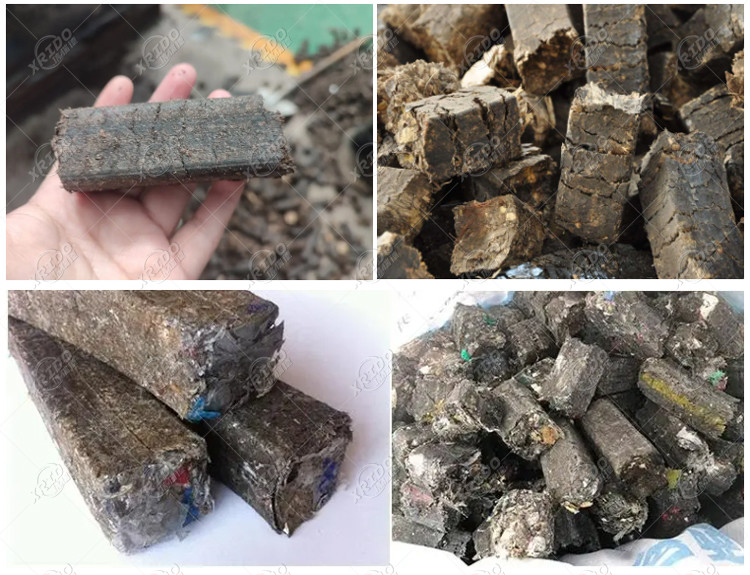

RDF alternative fuel, also known as Refuse Derived Fuel, is a fuel made by crushing, sorting, drying, magnetic separation, compression molding and other treatments of urban solid waste to remove non-combustible materials (such as metals, glass and organic matter). This fuel is mainly made of non-hazardous waste combustible solid waste generated in production, life and other activities, and can also be waste textiles, leather scraps, waste plastics, light materials of domestic waste, etc.

Msw Srf Rdf Briquette Machine Cloth Plastic Fabric RDF Briquetting Machine MSW To RDF SRF Briquette Plant

What are the RDF/SRF alternative fuel preparation equipment of XRIDO Group?

The domestic waste alternative fuel (SRF) preparation system can convert domestic waste into high-quality alternative fuel (SRF). The entire system adopts modular combination from crushing, transportation and sorting, with high processing efficiency and low operating cost.
First, the household garbage to be crushed is sent to the primary crushing for coarse crushing, and then the crushed materials are subjected to fine processing processes such as screening, magnetic separation, and air separation to obtain usable metals, light materials, and heavy materials; the light materials are further transported to the secondary crushing for fine crushing, and finally the granular 98% less than 30-80mm is obtained. Advantageous alternative fuel SRF

Msw Srf Rdf Briquette Machine Cloth Plastic Fabric RDF Briquetting Machine MSW To RDF SRF Briquette Plant

Msw Srf Rdf Briquette Machine Cloth Plastic Fabric RDF Briquetting Machine MSW To RDF SRF Briquette Plant

General industrial solid waste alternative fuel RDF/SRF preparation system is mainly aimed at high calorific value industrial solid waste such as waste cloth, waste plastic, and leather scraps.
The dual-axis + single-axis dual-stage crushing concept can not only achieve the crushing of complex raw materials, but also ensure that the particle size of the output material reaches 95% of the standard rate, which is conducive to the production of RDF molding materials at the back end, and can also meet the sales needs of SRF bulk materials. One system can produce RDF molding materials and SRF bulk materials, and both are high-quality alternative fuels. Production is arranged according to market demand, and no matter how the market changes, it can guarantee operating profits.
Product Application

Msw Srf Rdf Briquette Machine Cloth Plastic Fabric RDF Briquetting Machine MSW To RDF SRF Briquette Plant

Msw Srf Rdf Briquette Machine Cloth Plastic Fabric RDF Briquetting Machine MSW To RDF SRF Briquette Plant

Decoration waste RDF/SRF alternative fuel preparation system. Through a variety of refined preparation processes such as crushing, screening, magnetic separation, and air separation, the sand, soil, metal and other debris in the decoration waste are separated, and finally the light combustibles are prepared into high calorific value RDF/SRF alternative fuels.
Model XRD600 XRD800
Capacity(t/h) 2.5-3 4-4.5
Motor power(kw) 180(90*2) 220(110*2)

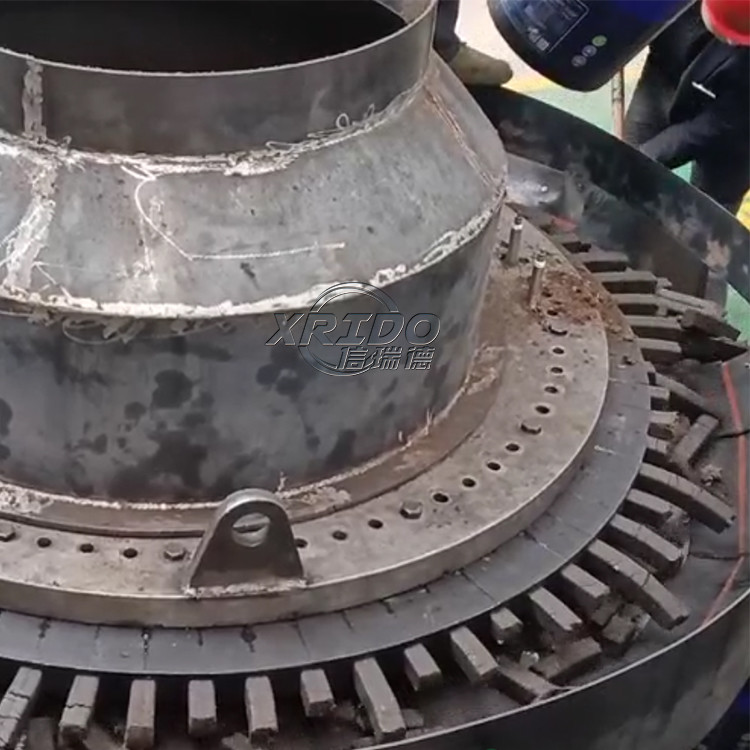

Ring mold size(mm) ∅608 ∅768
Press roller quantity(pcs) 2
Transmission method Asynchronous motor
V-belt + gear
Water-cooled synchronous motor
Timing belt + gear
Feeding type Horizontal screw + forced feeding
Machine size(m) 3.2*2.2*2.1 3.2*2.3*2.1
Weight(kgs) 8480 13900

Msw Srf Rdf Briquette Machine Cloth Plastic Fabric RDF Briquetting Machine MSW To RDF SRF Briquette Plant

Msw Srf Rdf Briquette Machine Cloth Plastic Fabric RDF Briquetting Machine MSW To RDF SRF Briquette Plant

Providing one-stop Solution

The company's main products include double-axis shredders, metal crushers, solid waste disposal equipment and renewable resource equipment to meet the needs of different customers. By providing a one-stop solution, XRIDO Group can helps customers solve various solid waste treatment problems.

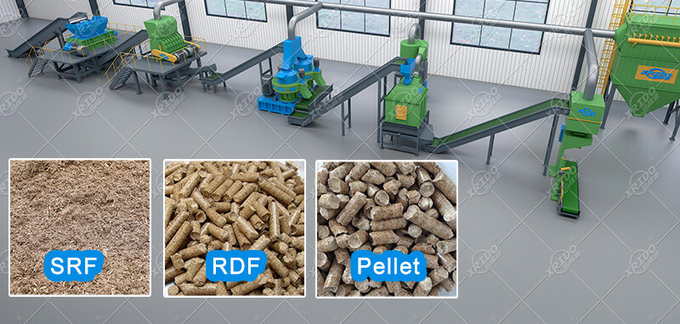

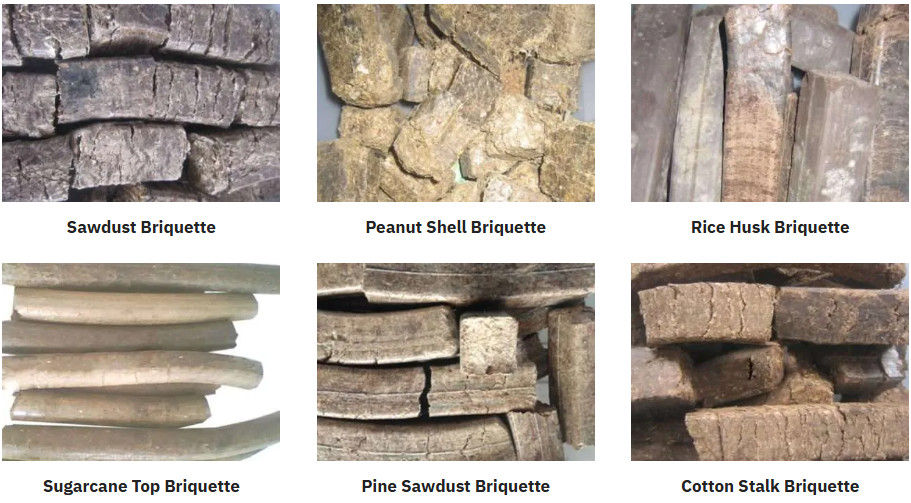

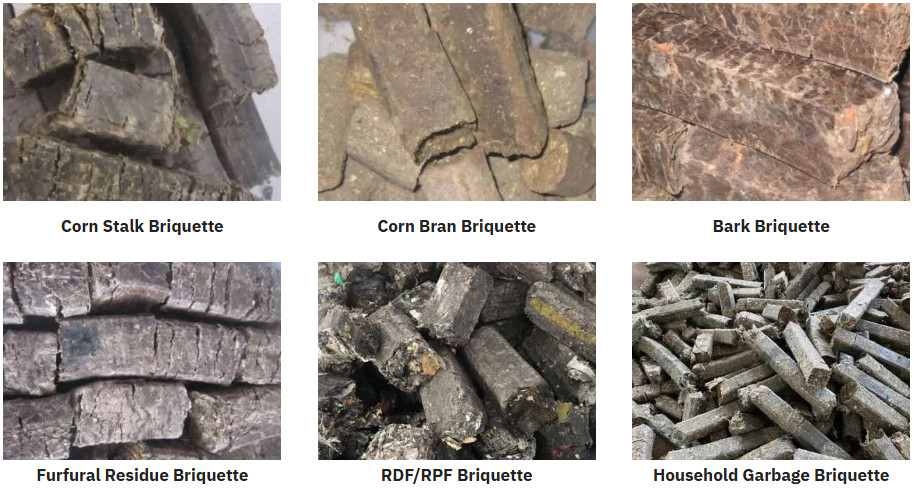

Waste to Biomass/RDF/SRF/TDF Briquette System:

The solid waste disposal system can be customized according to the actual materials.

Msw Srf Rdf Briquette Machine Cloth Plastic Fabric RDF Briquetting Machine MSW To RDF SRF Briquette Plant

Msw Srf Rdf Briquette Machine Cloth Plastic Fabric RDF Briquetting Machine MSW To RDF SRF Briquette Plant

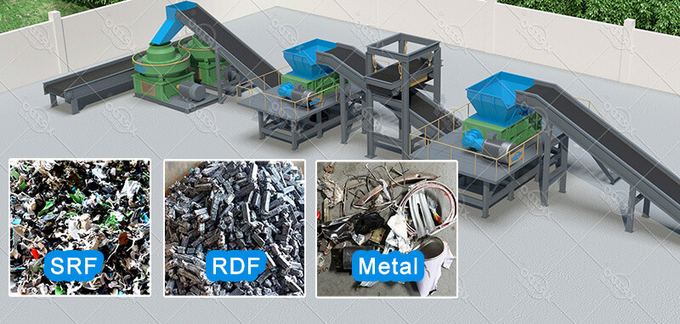

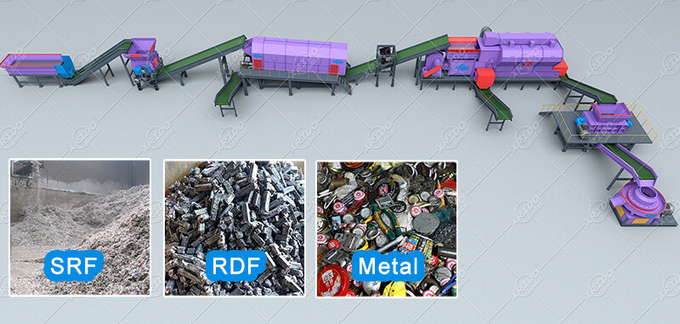

MSW to RDF briquette Plant Industrial Waste to RDF briquette Plant

Msw Srf Rdf Briquette Machine Cloth Plastic Fabric RDF Briquetting Machine MSW To RDF SRF Briquette Plant

Msw Srf Rdf Briquette Machine Cloth Plastic Fabric RDF Briquetting Machine MSW To RDF SRF Briquette Plant

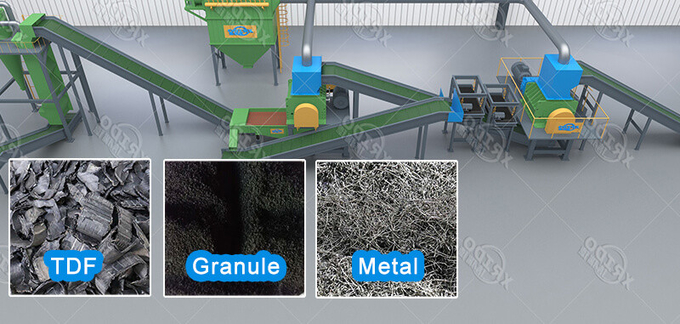

Biomass pellet/briquette Plant Waste Tire Disposal System

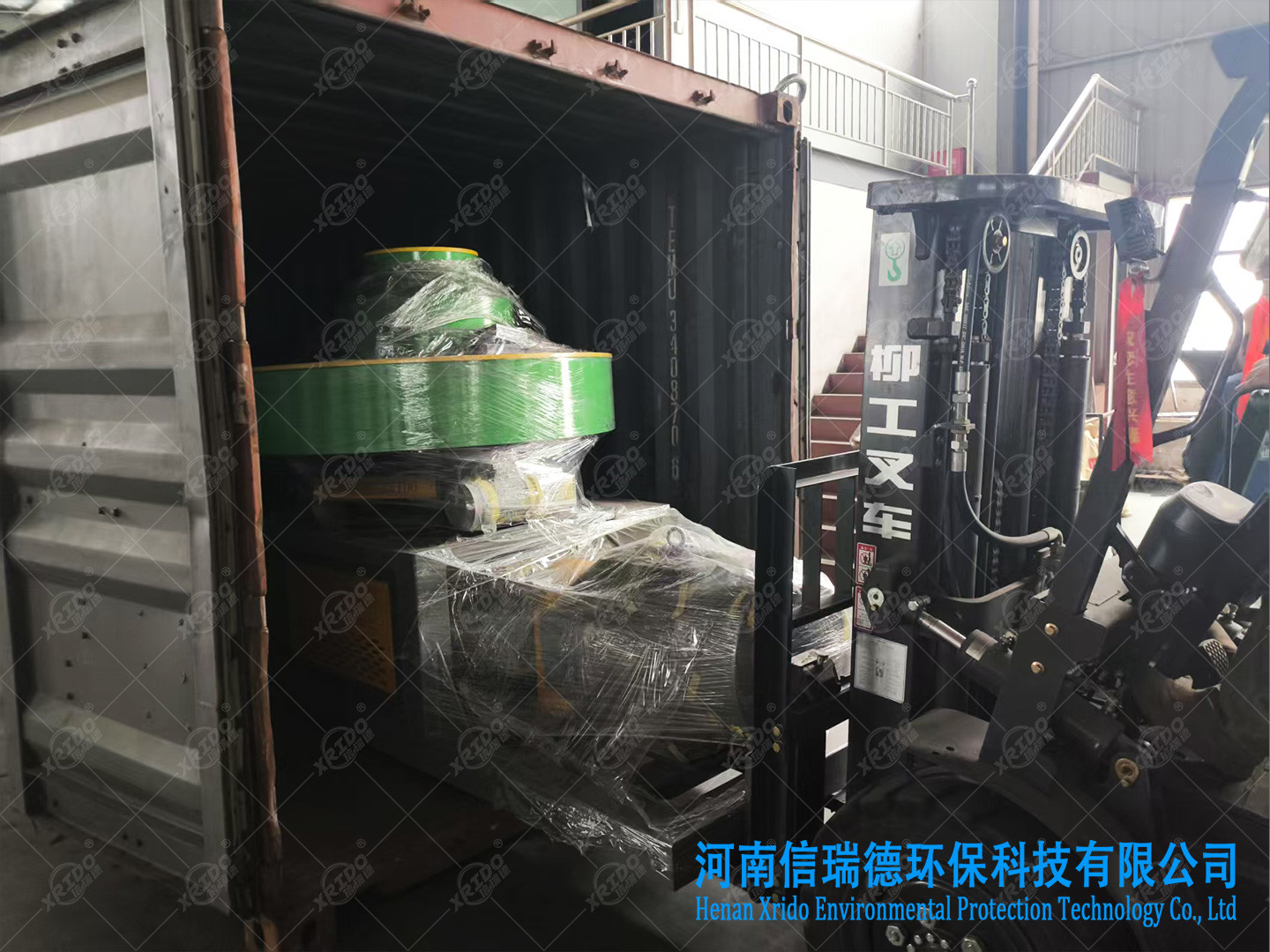

Case:

Msw Srf Rdf Briquette Machine Cloth Plastic Fabric RDF Briquetting Machine MSW To RDF SRF Briquette Plant

Msw Srf Rdf Briquette Machine Cloth Plastic Fabric RDF Briquetting Machine MSW To RDF SRF Briquette Plant
